SFH610A-3 Transistor Output Optocouplers Vishay

SFH610A-3

Product Information

Part : SFH610A-3
Brand : Vishay
Description : Transistor Output Optocouplers Phototransistor Out Single CTR 100-200%

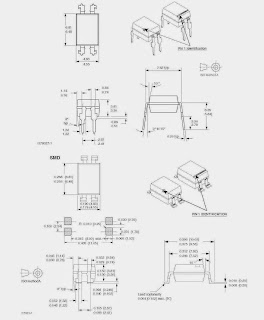

Package : DIP-4
Configuration: 1 Channel
Input Type: DC
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Emitter Saturation Voltage: 0.4 V
Isolation Voltage: 5300 Vrms
Current Transfer Ratio: 100 % to 200 %
Maximum Forward Diode Voltage: 1.65 V
Maximum Input Diode Current: 60 mA
Maximum Collector Current: 100 mA
Maximum Power Dissipation: 150 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Forward Current: 60 mA
Maximum Reverse Diode Voltage: 6 V
Number of Channels: 1 Channel

FEATURES
• Good CTR linearity depending on forward current
• Isolation test voltage, 5300 VRMS
• High collector emitter voltage, VCEO = 70 V
• Low saturation voltage
• Fast switching times
• Low CTR degradation
• Temperature stable
• Low coupling capacitance
• End stackable, 0.100" (2.54 mm) spacing
• High common mode interference immunity
• Lead (Pb)-free component
