Product Information

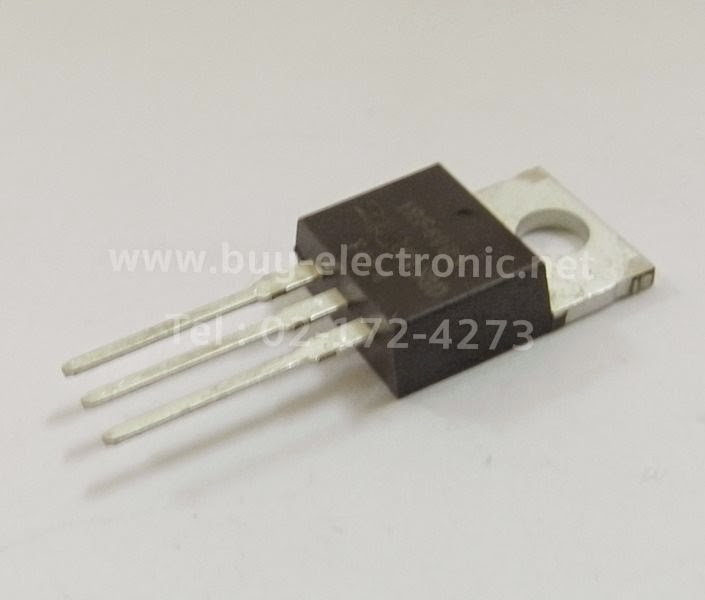

Part : IRF4905
Brand : International Rectifier
Description : Power Mosfet
Package : TO-220AB
Continuous Drain Current : -74
Pulsed Drain Current : -260
Power Dissipation : 200W
Linear Derating Factor : 1.3 W/°C
Gate-to-Source Voltage : ± 20
Avalanche Current : -38A
Repetitive Avalanche Energy : 20 mJ
Peak Diode Recovery dv/dt : -5.0
Operating Junction and Storage Temperature Range : -55 to + 175
Soldering Temperature, for 10 seconds : 300 (1.6mm from case )
Mounting torque, 6-32 or M3 srew : 10 lbf•in (1.1N•m)

-  Advanced Process Technology
-  Ultra Low On-Resistance
-  Dynamic dv/dt Rating
-  175°C Operating Temperature
-  Fast Switching
-  Fully Avalanche Rated
