IPM MODULE PM10CSJ060 POWEREX (Datasheet pdf)

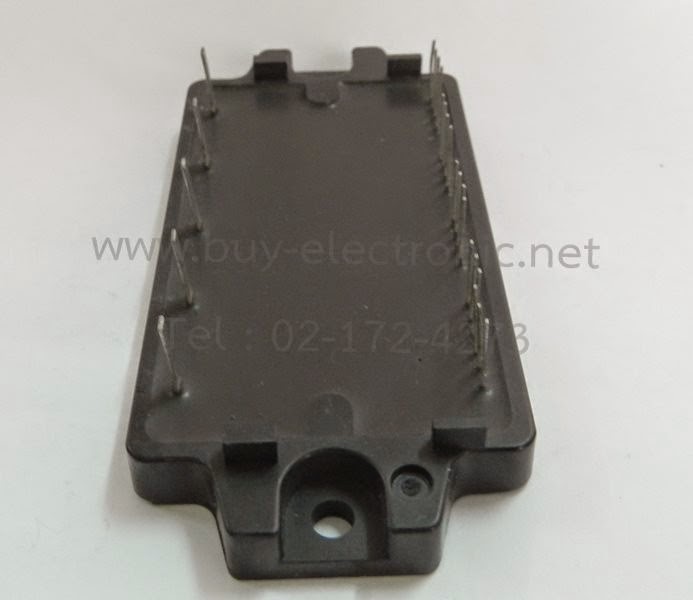

IPM MODULE PM10CSJ060  POWEREX

Powerex Intellimod™ Intelligent Power Modules are isolated base modules designed for power
switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the
IGBT and free-wheel diode power devices.

Features:
Complete Output Power Circuit
Gate Drive Circuit
Protection Logic
 - Short Circuit
 - Over Temperature
 - Under Voltage

Applications:
Inverters
UPS
Motion/Servo Control
Power Supplies

Product Information

Part : PM10CSJ060
Brand : Mitsubishi
Description :  IPM, 600V, 10A
Package : Module
Collector Emitter Voltage V(br)ceo:  600V
Collector Emitter Voltage Vces:  600V
DC Collector Current:  10A
No. of Pins:  23
Operating Temperature Max:  150°C
Operating Temperature Min:  -20°C
Power Dissipation Pd:  39W
SVHC: To Be Advised
Transistor Case Style:  Intellimod
Transistor Polarity:  N Channel
