Product Information

Part : MC14071BCP

Brand : ON Semiconductor

Description : Logic Gates 3-18V Quad 2-Input

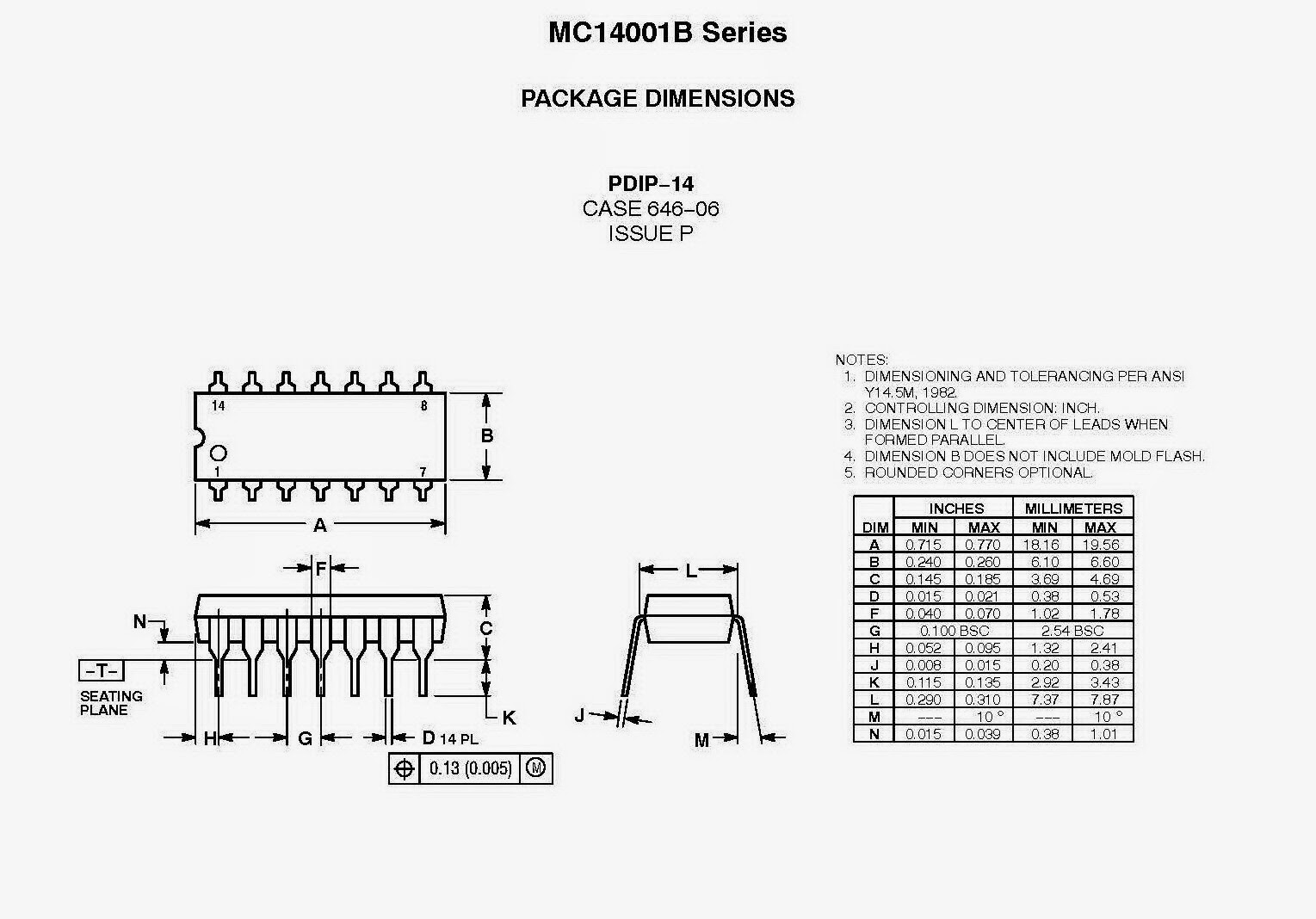

Package : PDIP-14

Product: Single-Function Gate

Logic Function: OR

Logic Family: MC140

Number of Gates: 4 Gate

Number of Input Lines: 2

Number of Output Lines: 1

High Level Output Current: - 4.2 mA

Low Level Output Current: 4.2 mA

Propagation Delay Time: 300 ns

Supply Voltage - Max: 18 V

Supply Voltage - Min: 3 V

Maximum Operating Temperature: + 125 C

Mounting Style: Through Hole

Features

- Supply Voltage Range = 3.0 Vdc to 18 Vdc

- All Outputs Buffered

- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range.

- Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B

- Pin−for−Pin Replacements for Corresponding CD4000 Series B Suffix Devices

- These Devices are Pb−Free and are RoHS Compliant

- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
