MEDIUM POWER SWITCHING USE INSULATED TYPE

 Transistor Module QM30TB-2H (Mitsubishi)

• IC Collector current - 30A
• VCEX Collector-emitter voltage - 1000V
• hFE DC current gain -  75
• Insulated Type

• UL Recognized











APPLICATION

AC motor controllers, DC motor controllers, NC equipment


OUTLINE DRAWING & CIRCUIT DIAGRAM For QM30TB-2H        Dimensions in mm

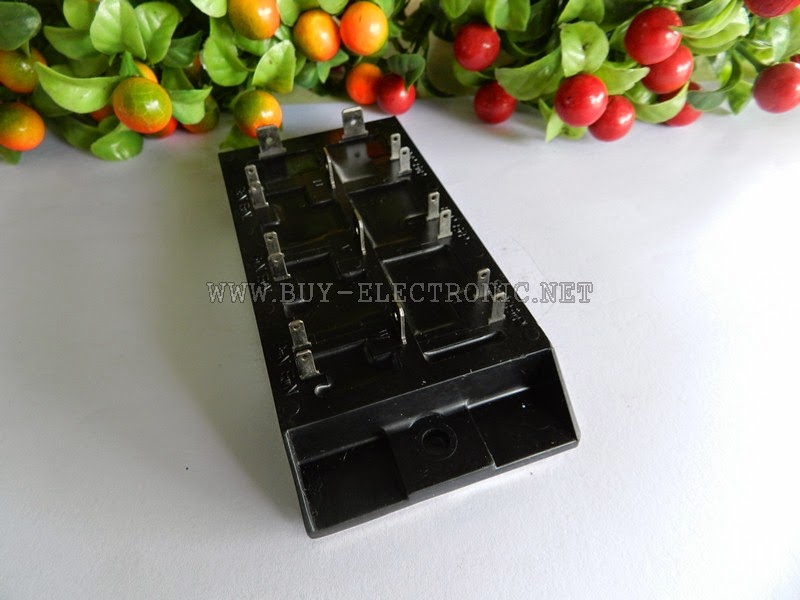

 Transistor Module QM30TB-2H (Mitsubishi) Over
