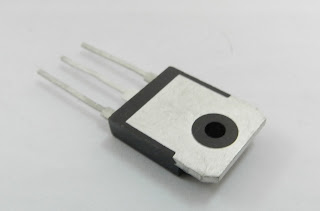

Part : FQA70N10
Brand : Fairchild
Description : N-Channel QFET® MOSFET 100 V, 70 A, 23 mΩ
Package : TO-3PN
Id - Continuous Drain Current: 70 A
Vds - Drain-Source Breakdown Voltage: 100V
Rds On - Drain-Source Resistance:25 mOhms
Transistor Polarity: N-Channel
Vgs - Gate-Source Breakdown Voltage:25 V
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 214 W
Mounting Style: Through Hole
Channel Mode: Enhancement
Configuration: Single
Fall Time: 160 ns
Forward Transconductance - Min: 48 S
Minimum Operating Temperature: - 55 C
Rise Time: 470 ns
คุณสมบัติ (Features)
- 70 A, 100 V, RDS(on) = 23 mΩ (Max) @VGS = 10 V, ID = 35 A- Low Gate Charge (Typ. 85 nC)
- Low Crss (Typ. 150 pF)
- 100% Avalanche Tested
- 175°C Maximum Junction Temperature Rating
